150L Volume Dry Powder Double Cone Mixer Machine Stainless Steel
Product Description of Double Cone Mixer
It is suitable for mixing the powder and grain state materials in pharmacy, chemical, food, building materials and other industries.
Through the vacuum conveyor for the machine, send the powder or grain state materials into the double - taper container, or send the materials into the container manually.
As the container rotates continuously, the materials moves complexly in the container so as to get the uniform mixing.
Technical parameter of Double Cone Mixer
| Volume | 150(L) |
| Charge volume | ≤100(L) |
| Loading capacity | 50(kgs/batch) |
| Barrel pressure | -0.1～0.15(MPa) |
| Jacket pressure | ≤0.3(MPa) |
| Power | 1.1kw |
| Inverter | 1.1kw(2-18rpm) |
| Wall thickness | 3(mm) |
| Weight | 500(kg) |
Main Features of Double Cone Mixer
1. The double-cone mixer is easy to clean, just add water to the hopper, turn it on, and then release the water, it can be cleaned or dry-cleaned;
2. The sealing structure of the double cone mixer is carefully designed, the sealing performance is reliable, the maintenance and disassembly are convenient, there is no dead angle, and the service life is long;
3. The mixing is uniform, the mixing time is short, and the materials of different properties determine the length of the mixing time;
4. When the double-cone mixer is discharging, just pull out the insert plate, turn it on or jog to make the material completely discharged. In this way, the operation is simple and hygienic, and there is no need to touch the raw materials with hands;
5. The feeding and discharging are very convenient. When feeding, add the raw materials and several different accessories at one time, then cover the lid and start stirring at the set time;
6. The double cone mixer is used for mixing powder materials in the pharmaceutical, food, chemical, new material, electronics and other industries, and the whole machine is made of stainless steel.

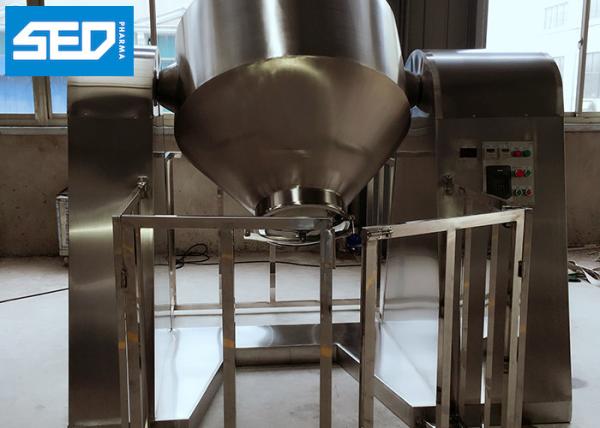

Product Show of Double Cone Mixer
Application of Double Cone Mixer
